Product Overview

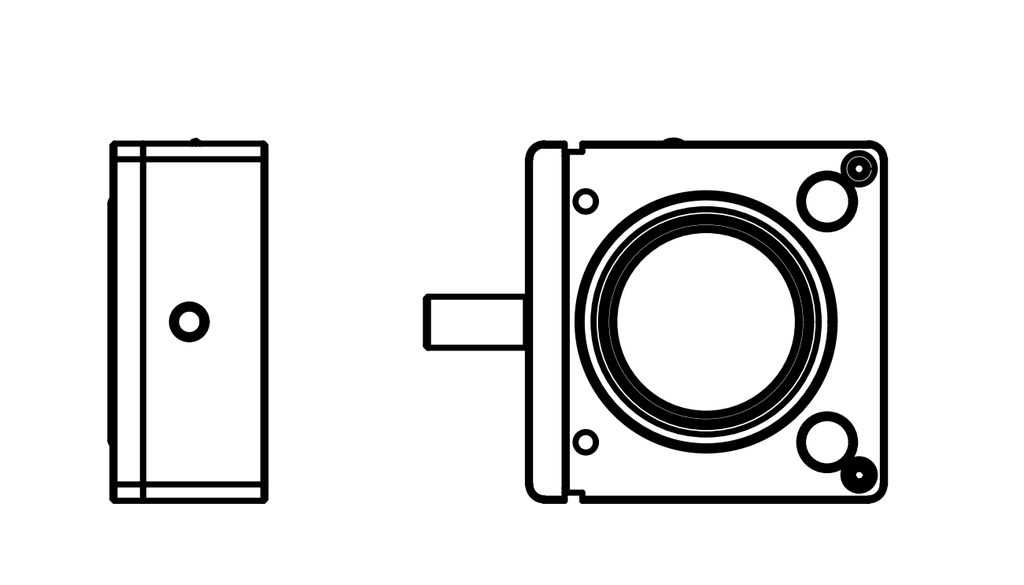

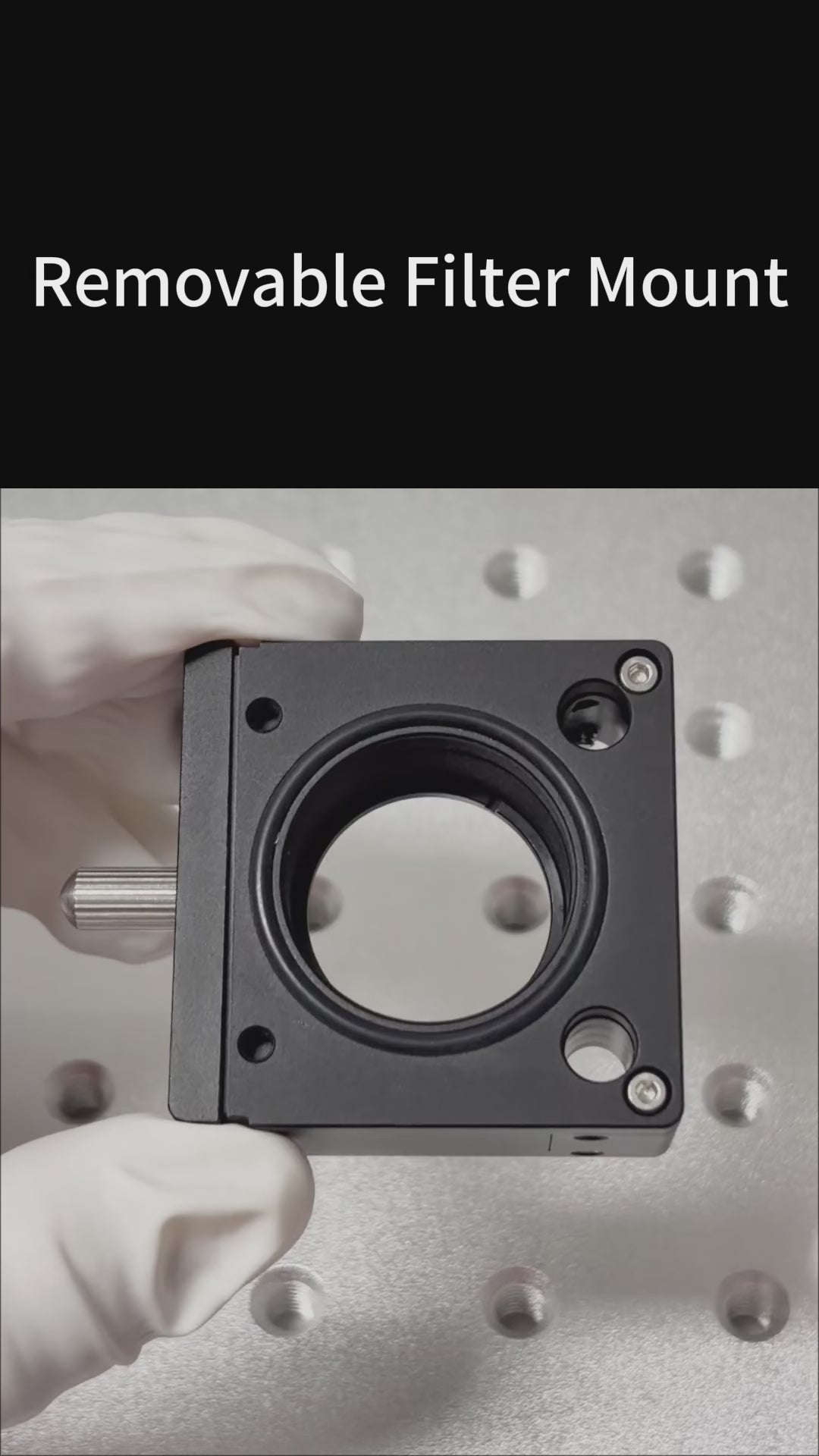

This mount is used for 0.5", 1", and 2" circular filters. It uses a drawer-type holder so filters can be changed or stacked without removing the cage rods. The frame is compatible with 16 mm, 30 mm, and 60 mm cage systems. The filter holder has SM05, SM1, and SM2 internal threads for optics, and the filters are fixed with retaining rings.

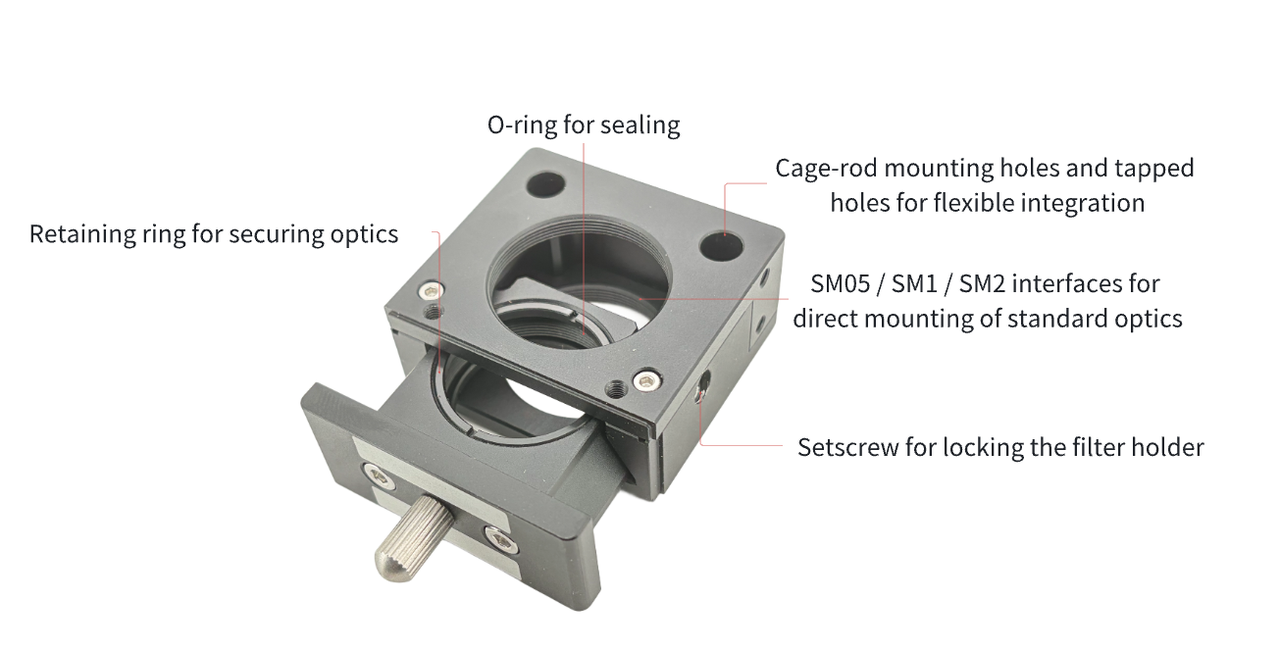

Features
-

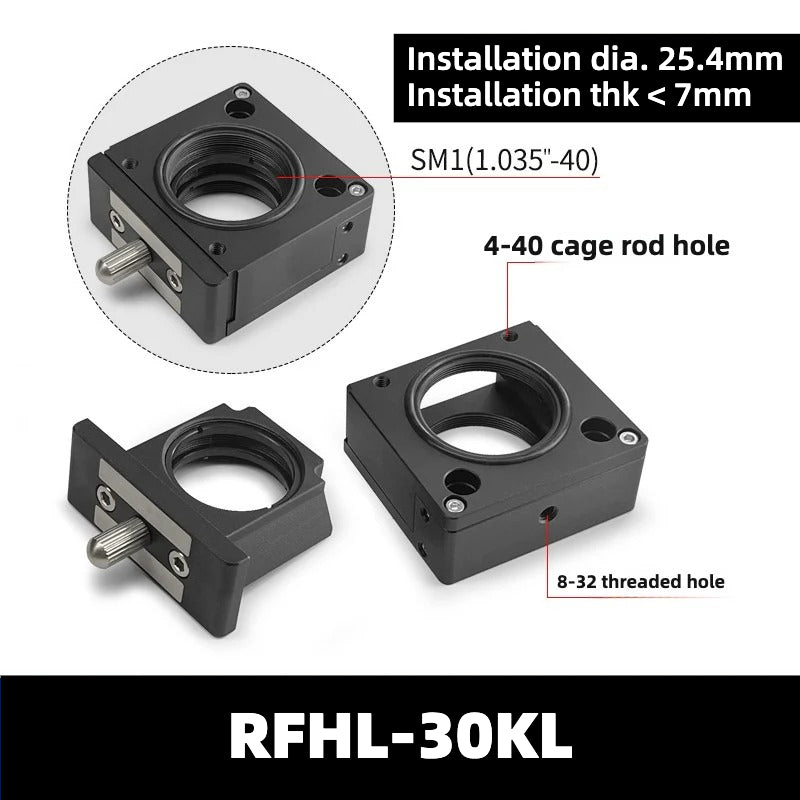

Compatible with 16 / 30 / 60 mm cage systems; φ6 mm rod holes and 4-40 / M3 threads connect to cage rods.
-

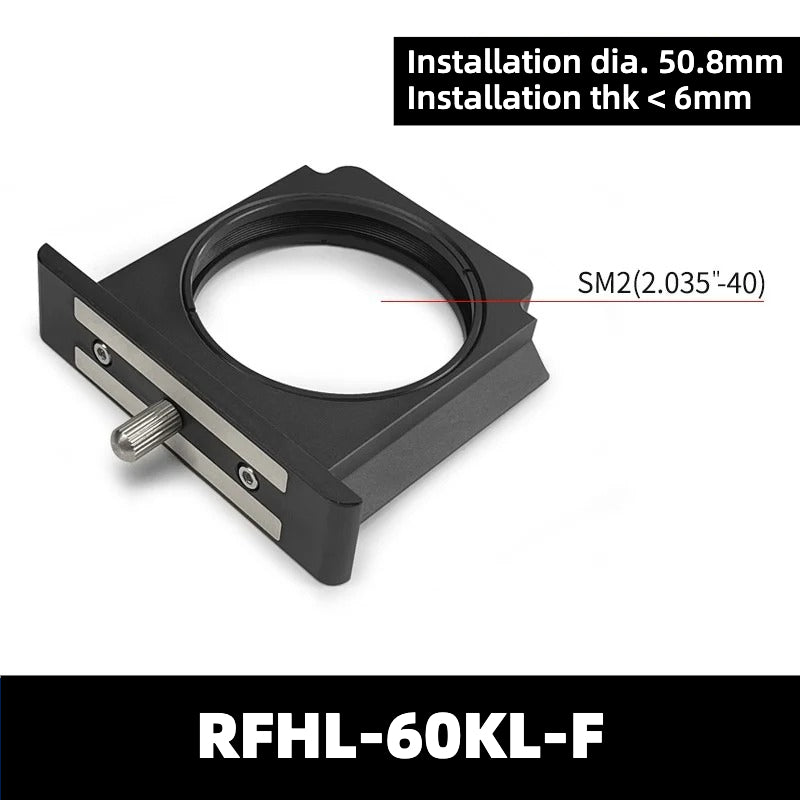

Filter holder with SM05 / SM1 / SM2 threaded optic ports for different filter sizes.
-

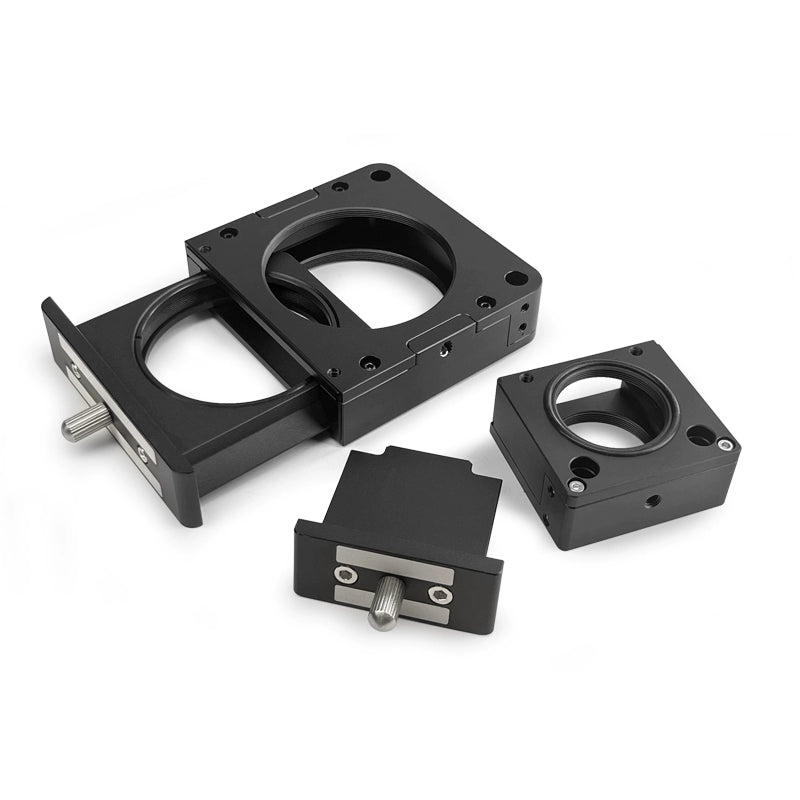

Drawer filter holders can be removed and stacked to build multi-stage filter sets.
-
Top panel with laser-etched frame for filter ID or status marking.
-
Internal rubber ring for sealing and light blocking, and to reduce stress on the filter edge.
-
Bottom 8-32 / M4 thread for posts or other supports; side setscrew locks the filter drawer.
Instructions
Mount the main body to the cage system or a post using the rod holes and threads.
Pull out the filter drawer, place the filter in the threaded port, and lock it with the retaining ring.
Insert the drawer back into the body and tighten the side setscrew.
Insert the KL-B blank plate when a light block is needed.
