We make the essential hardware for aligning, controlling, and calibrating optical systems.

Iris,Apertures,Mounts,Test Targets and OEM Parts

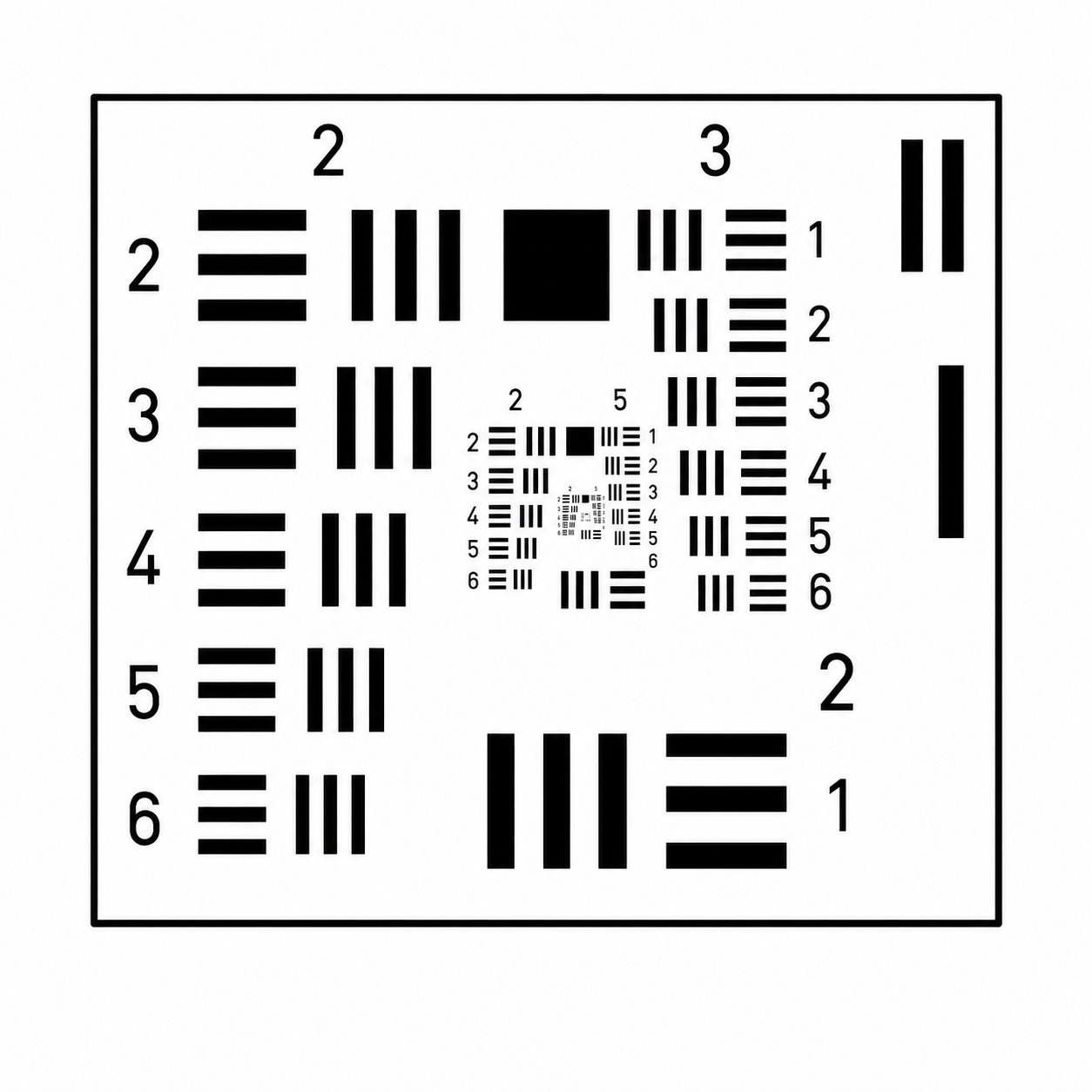

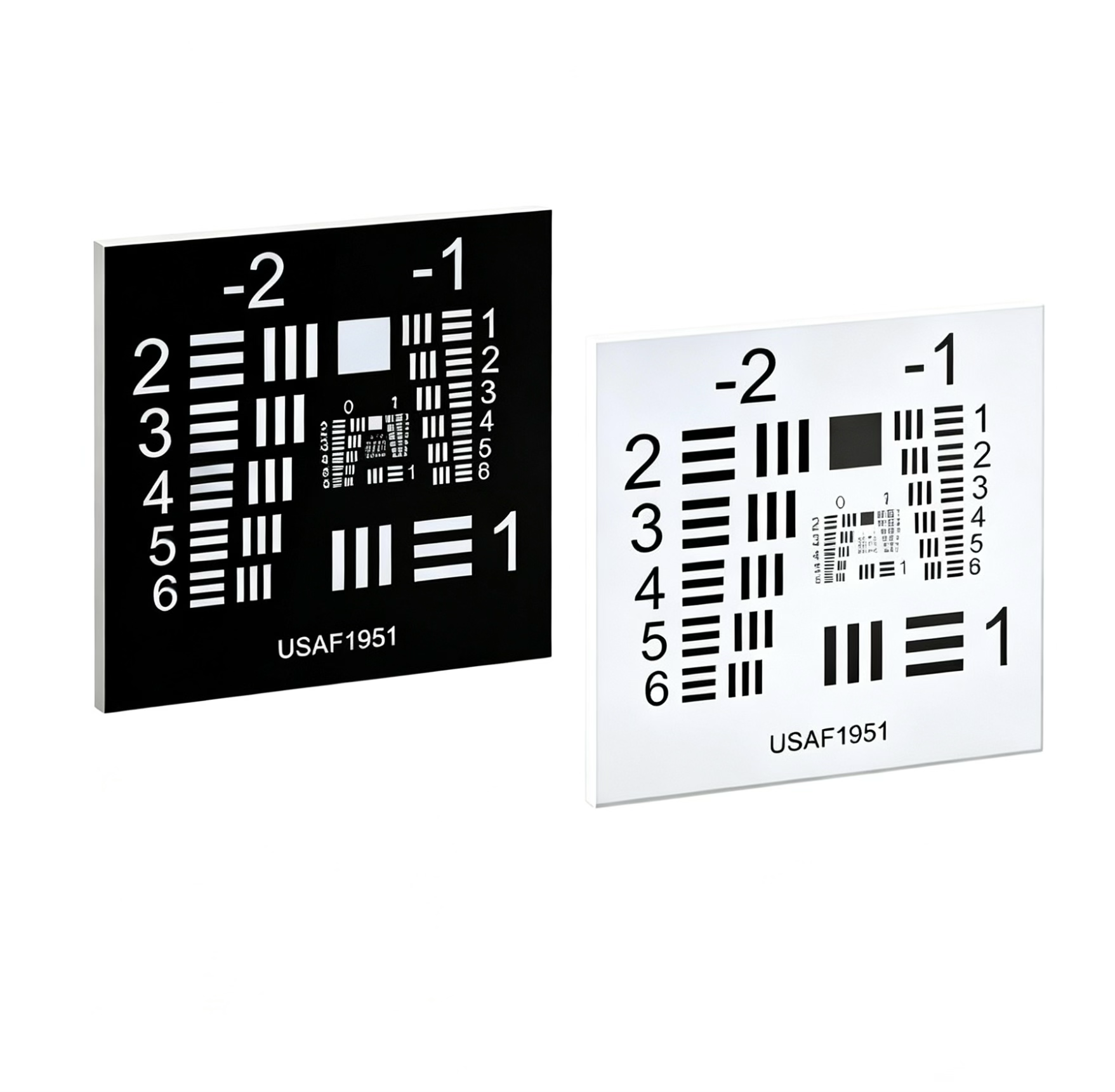

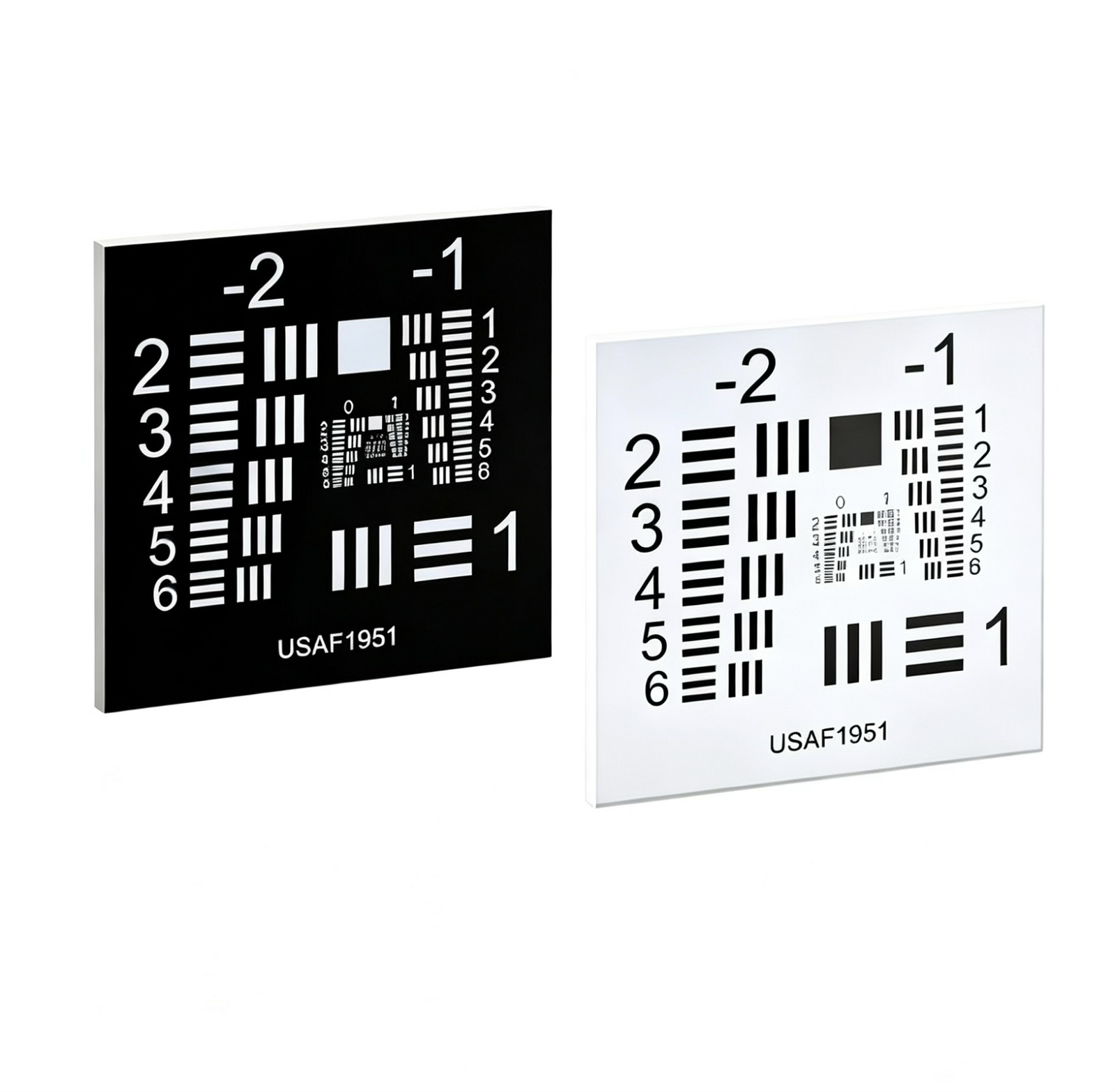

USAF 1951 Resolution Test Targets

  • Glass, UV, Ceramic, PET Film Substrate
  • Resolution from Group -2 to Group 9
  • Size from 1"x1" to 3"x3"
  • Positive and Negative Type

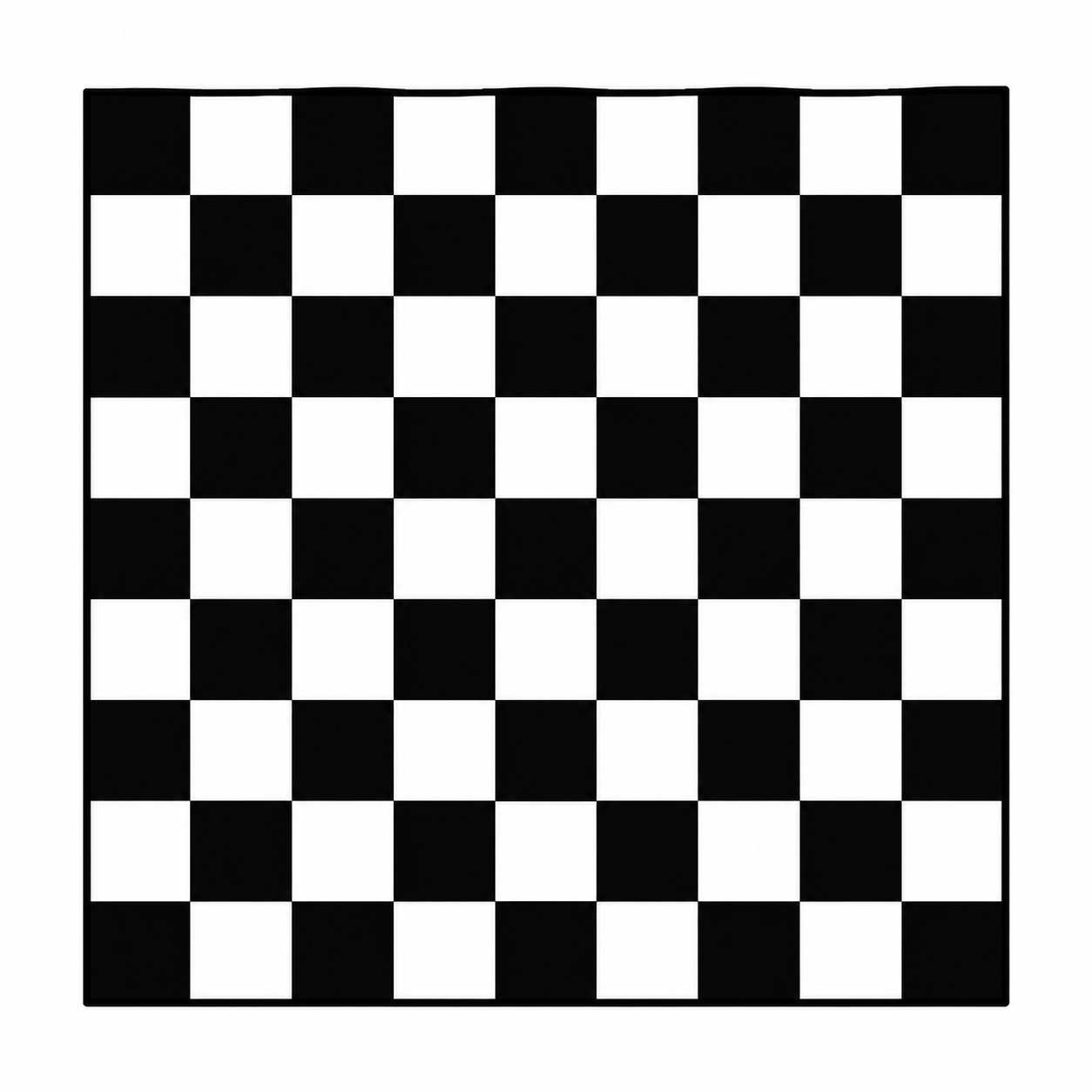

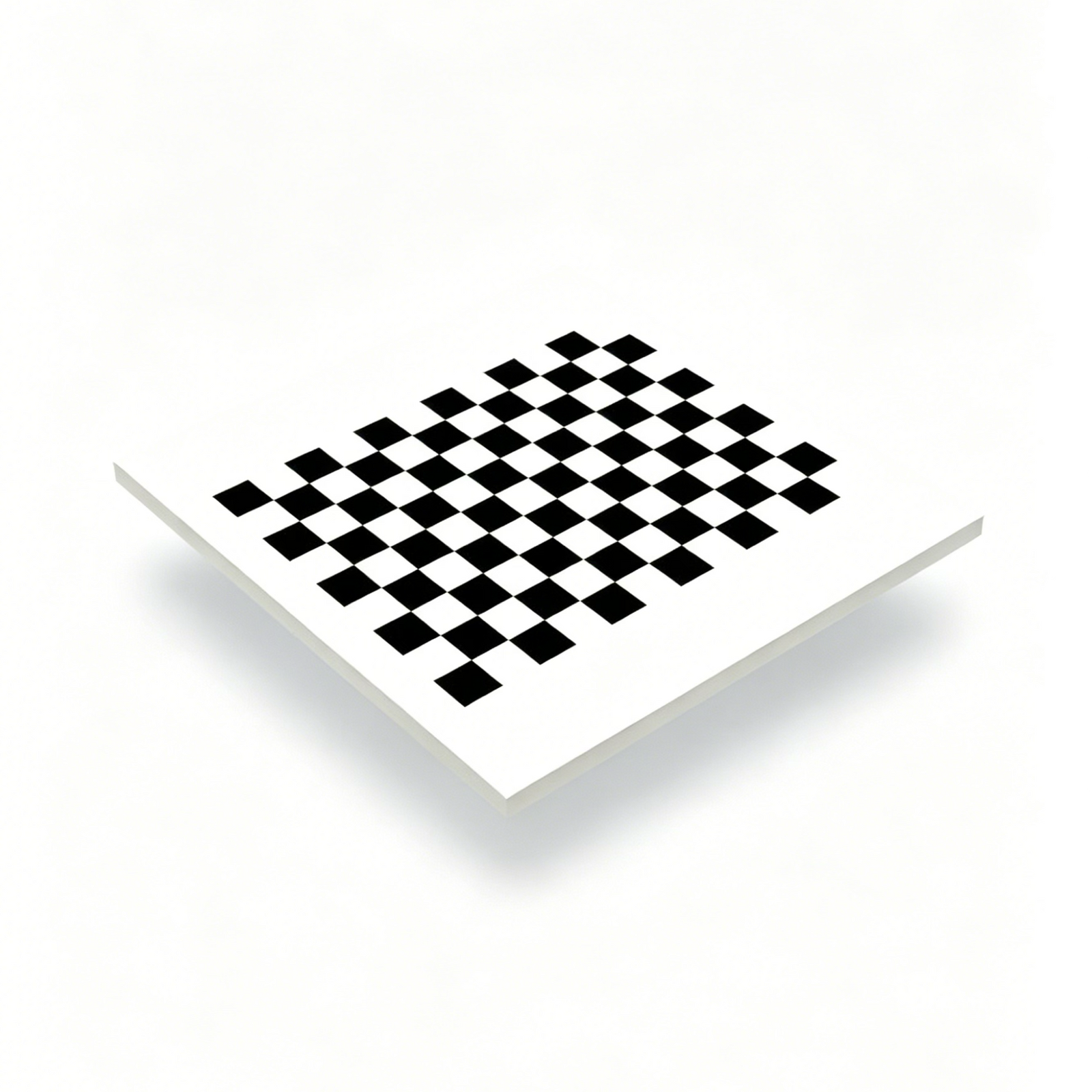

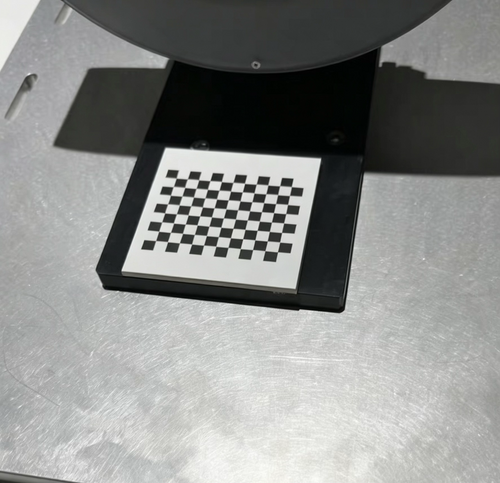

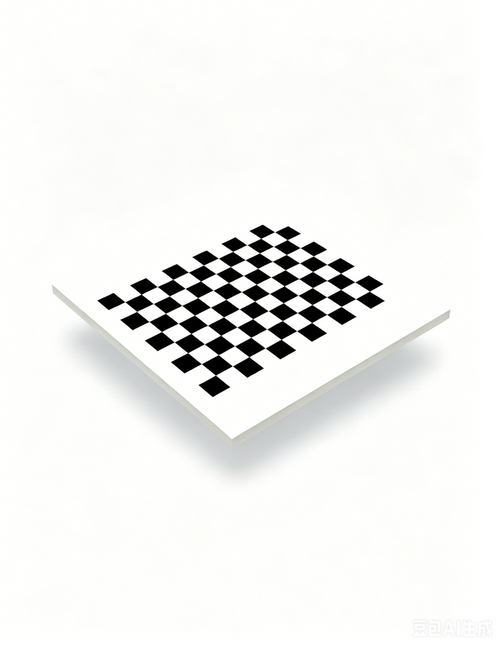

Checkerboard Calibration Targets

  • Glass, Aluminum Substrate
  • Block Size:25mmx25mm (min)
  • Pattern Array:12x9
  • Pattern Size: 720x540mm (max)

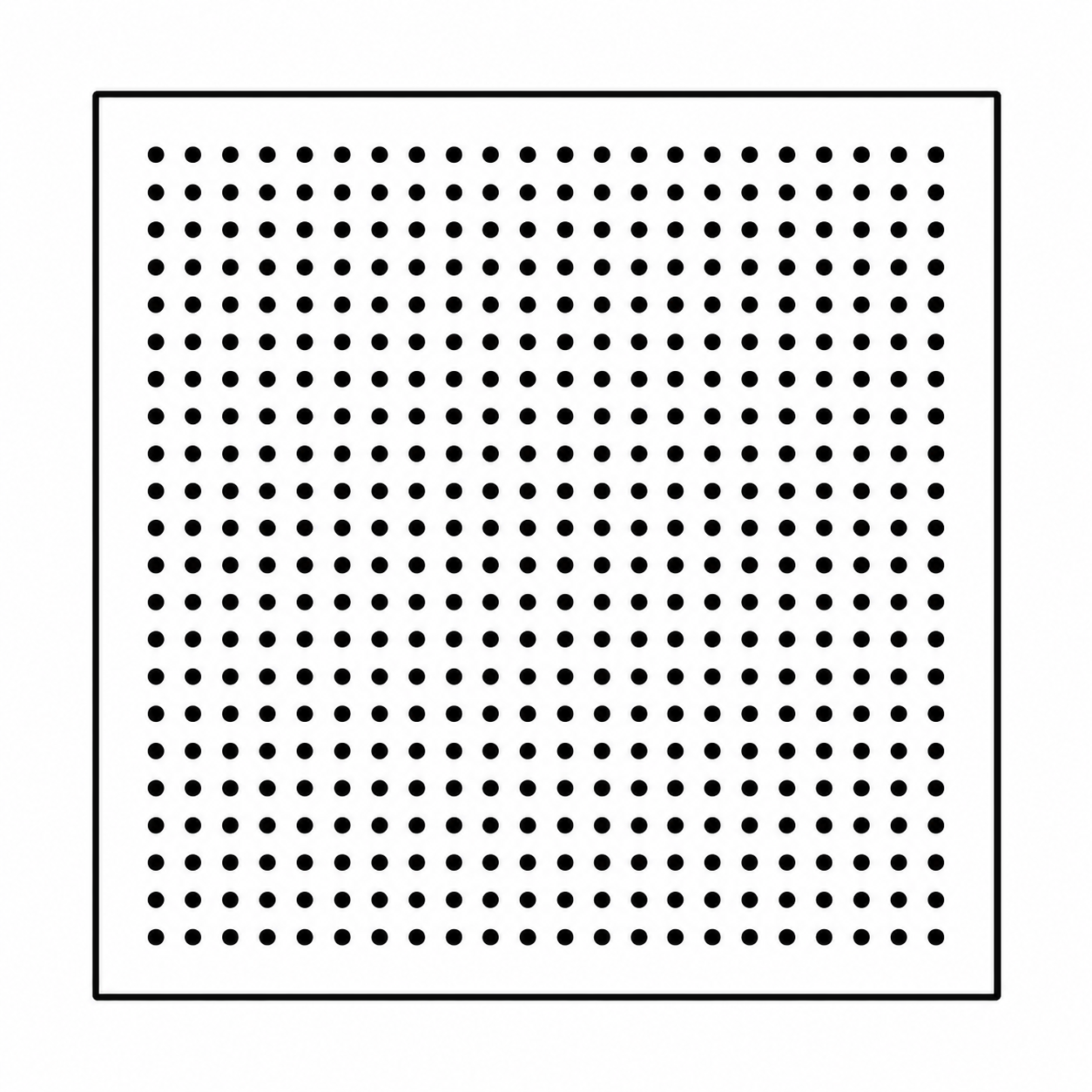

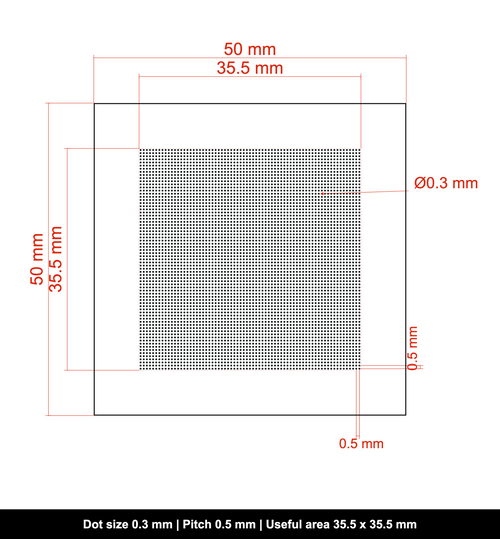

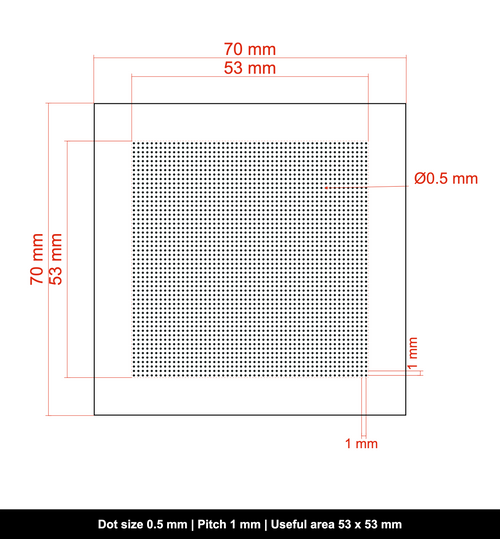

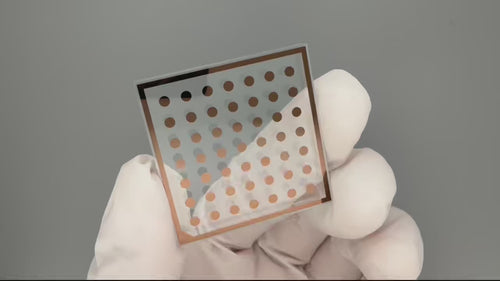

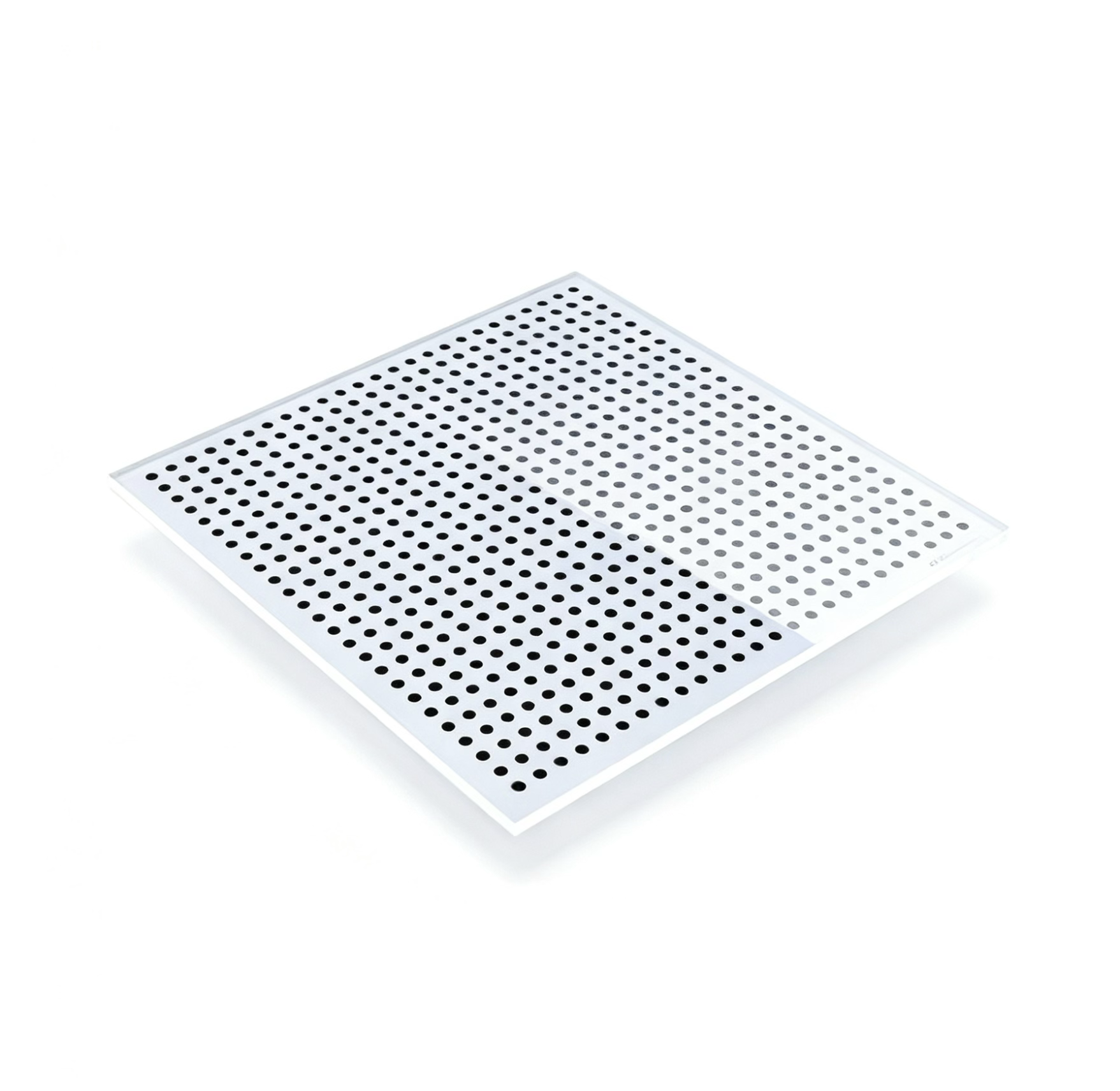

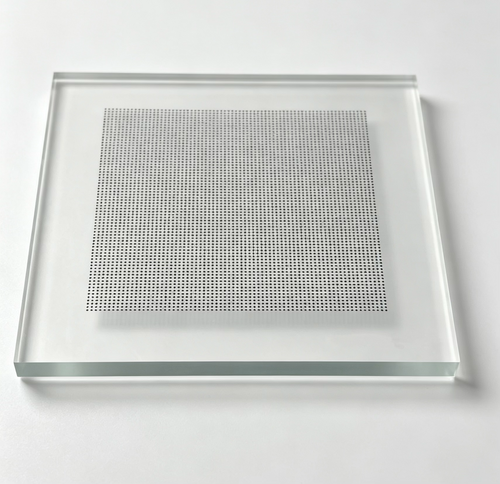

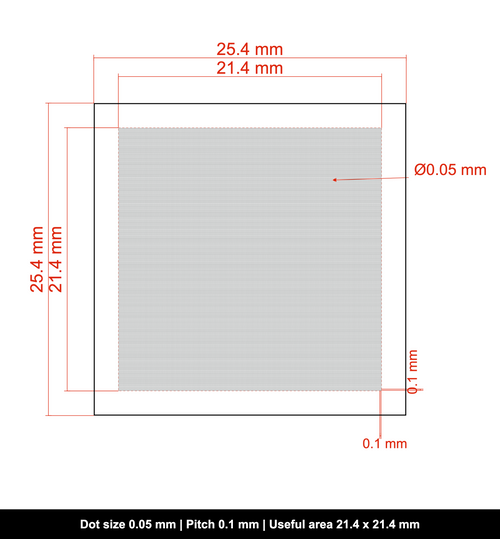

Dot Pattern Distortion Target

  • Glass, Aluminum Substrate
  • Dot Size from 0.3mm
  • Spacing from 0.5mm
  • Array from 7x7 to 71x71

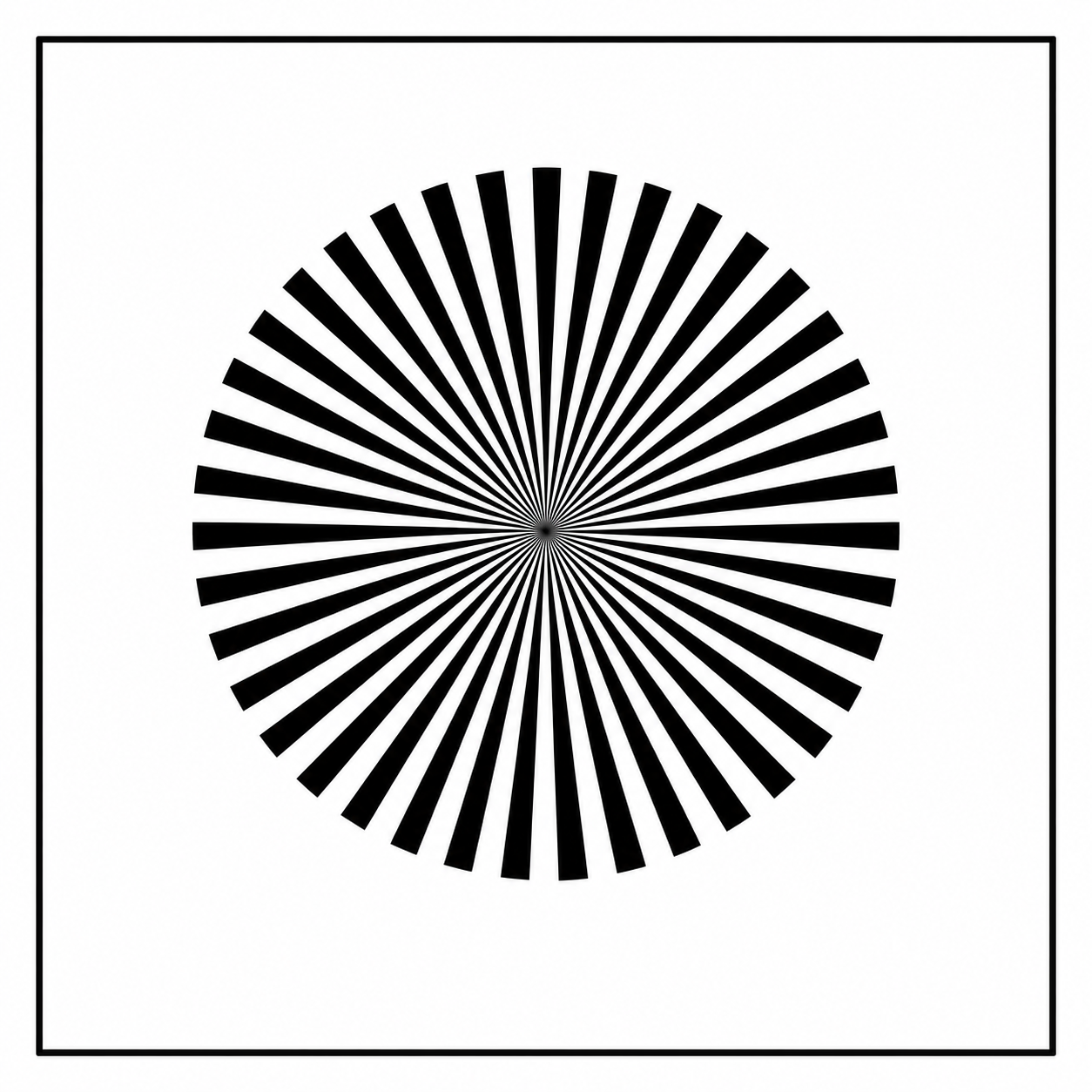

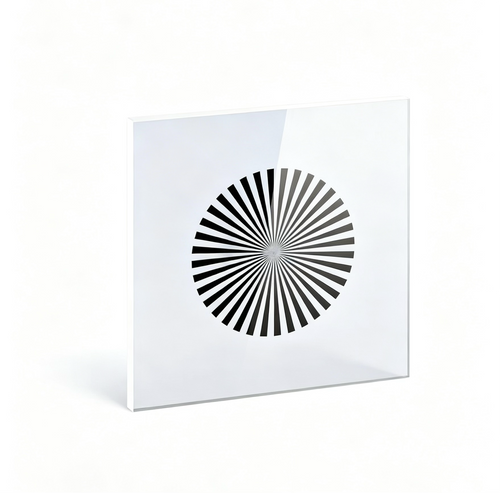

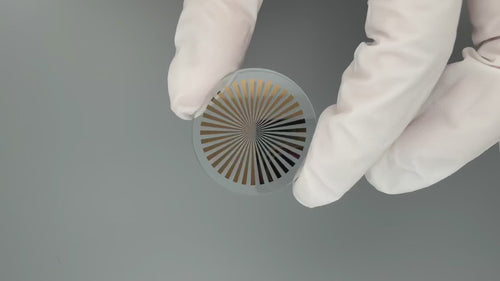

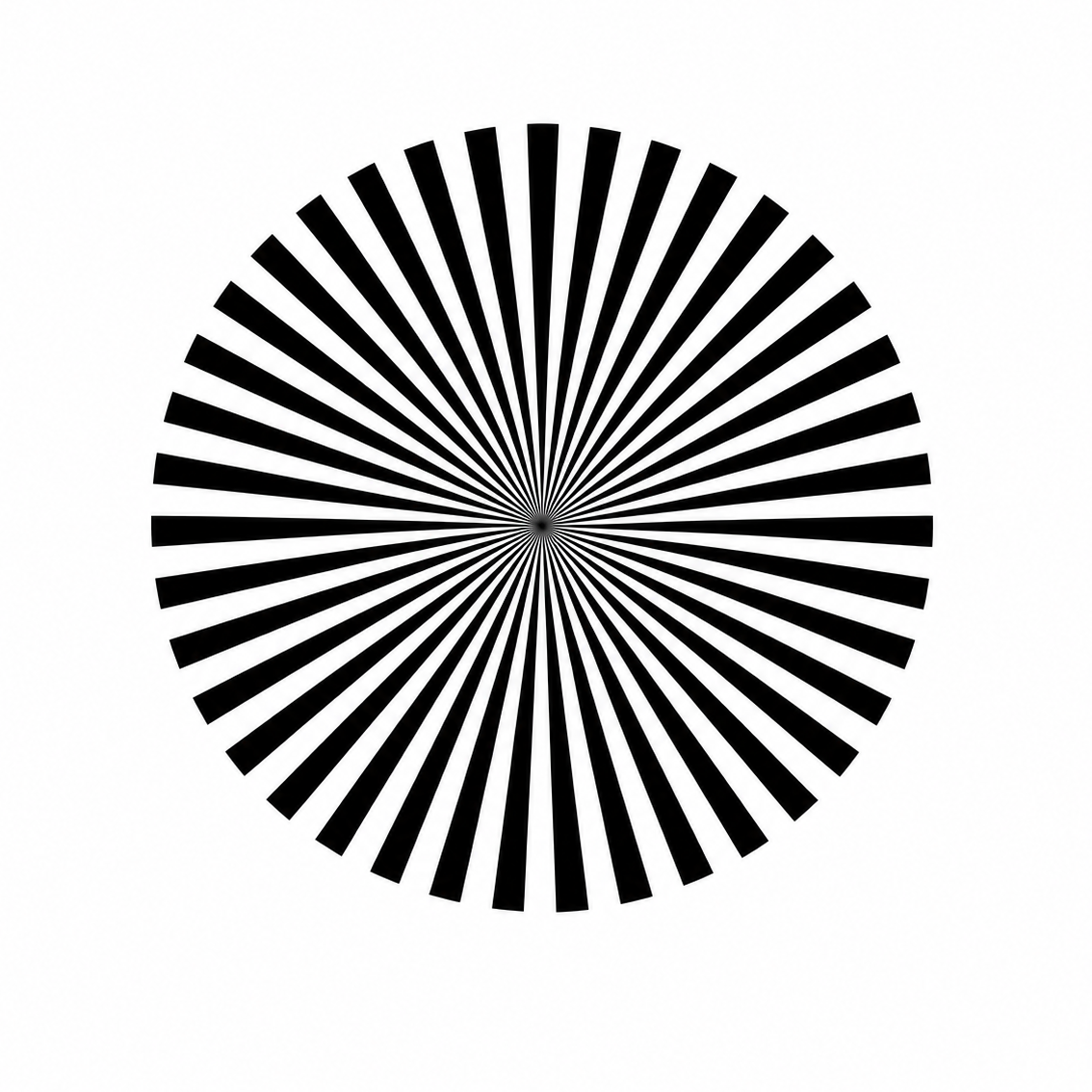

Siemens Star Target

  • Glass Substrate
  • Sector Number: 36-120
  • Wedge Angle: 3° to 10°
  • Dimension: 4"x4"

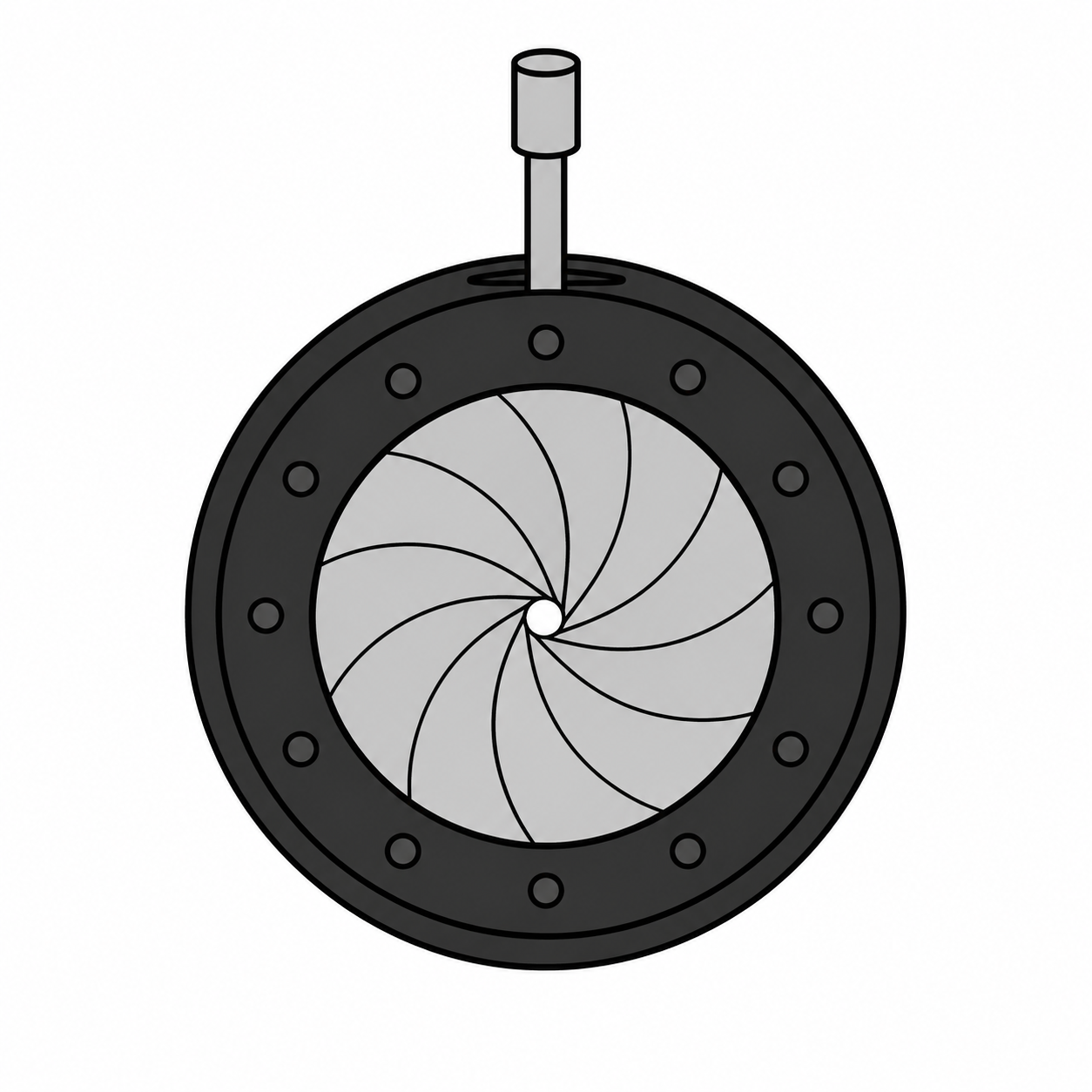

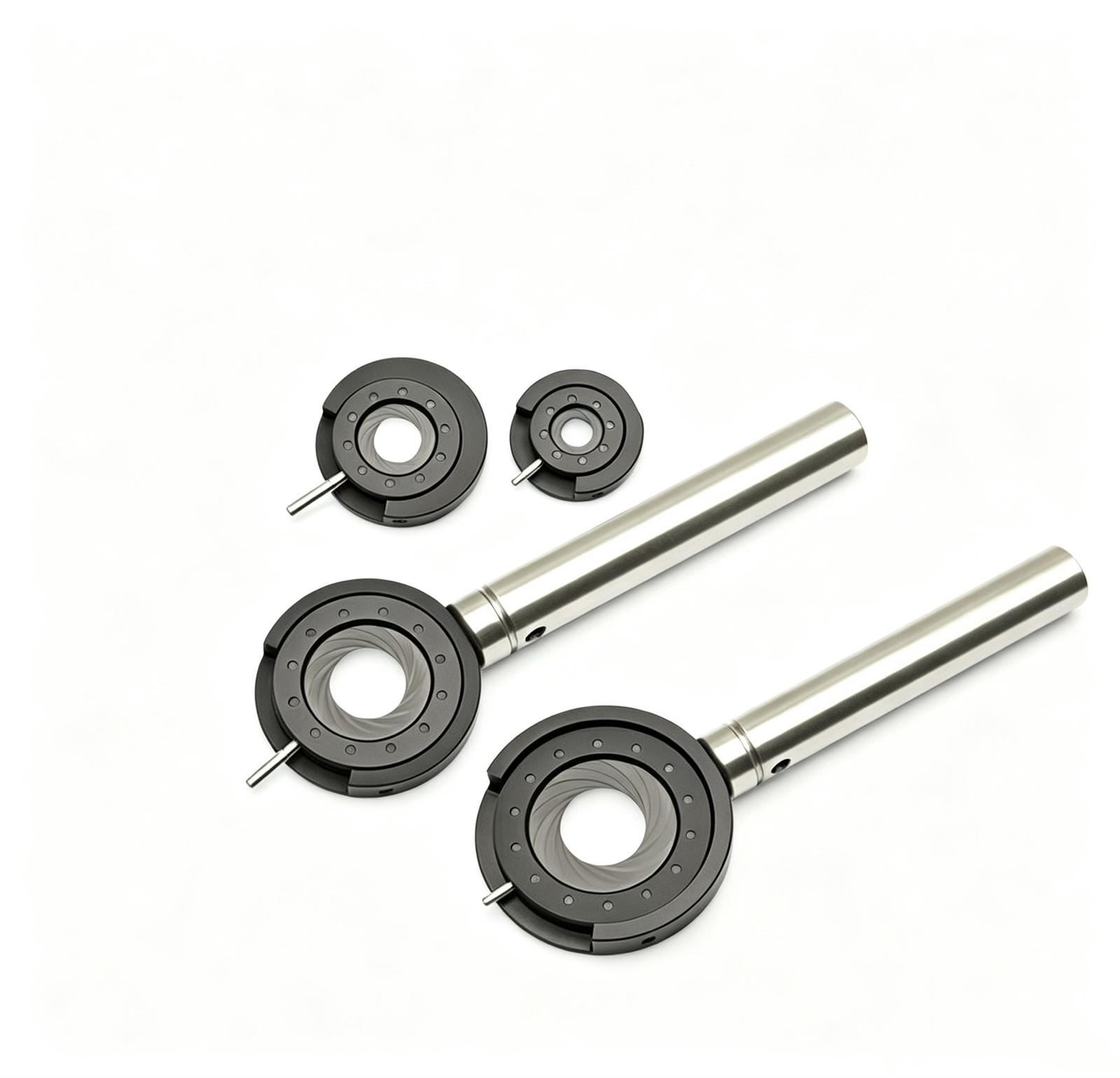

Lever Iris Diaphragms

  • Adjustable aperture from 0mm-120mm.
  • Lever control for manual adjustment.
  • Available with or without M4 Mounting Hole.
