Product Overview

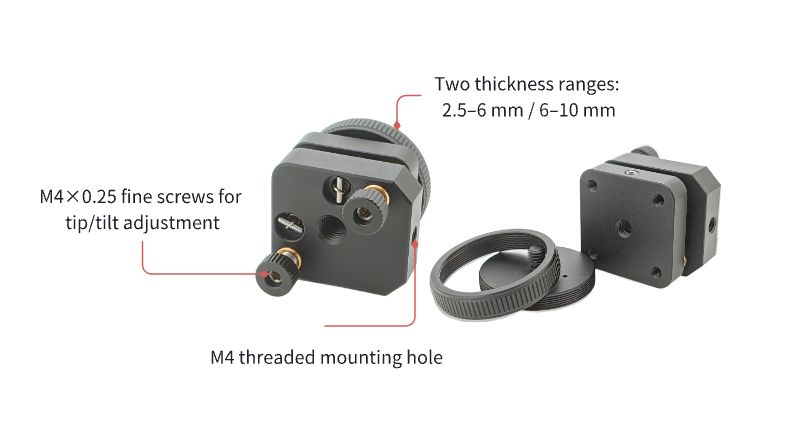

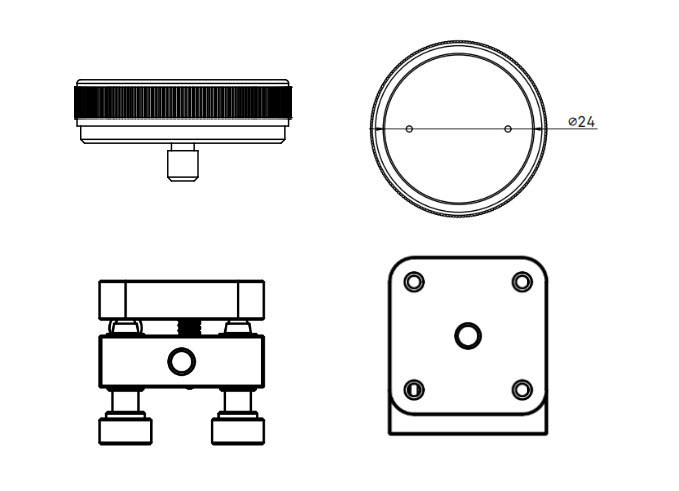

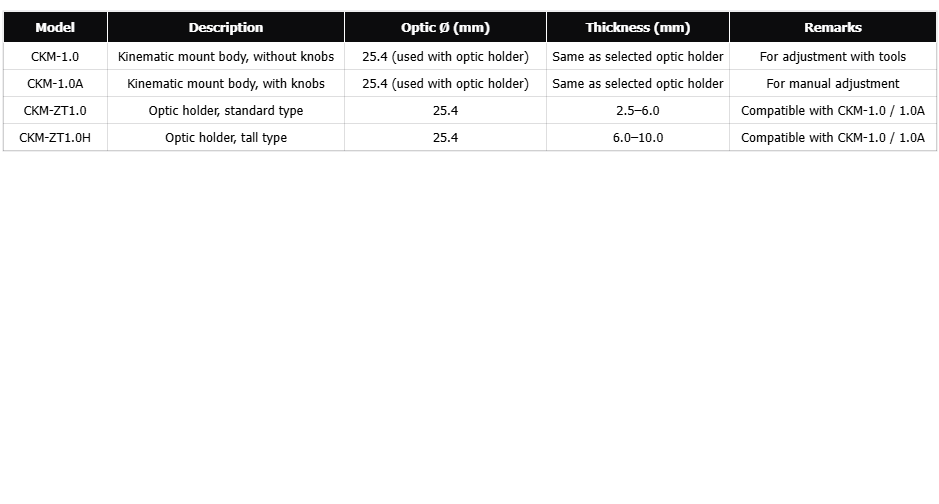

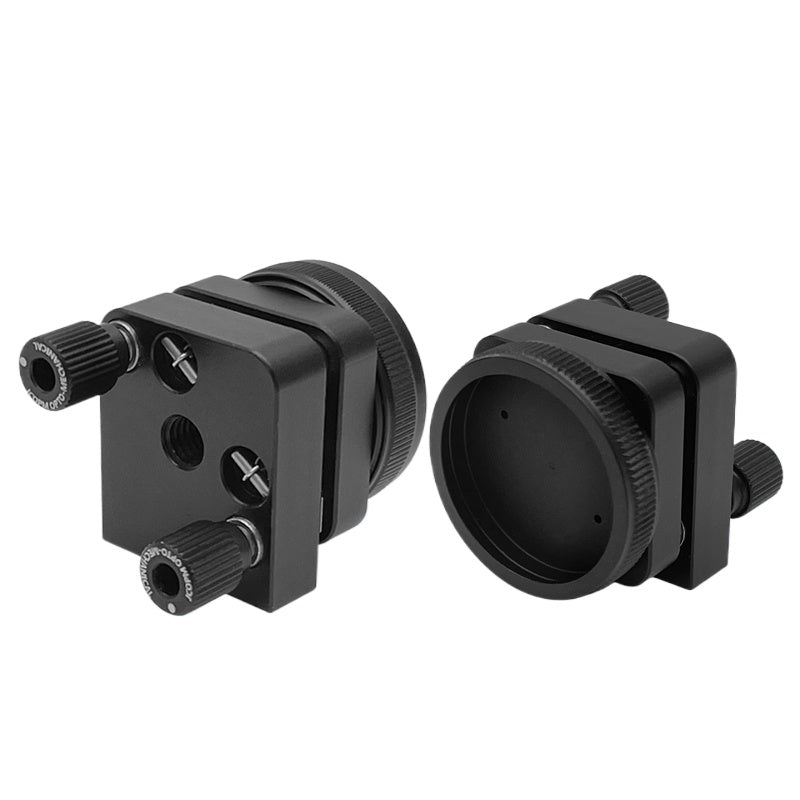

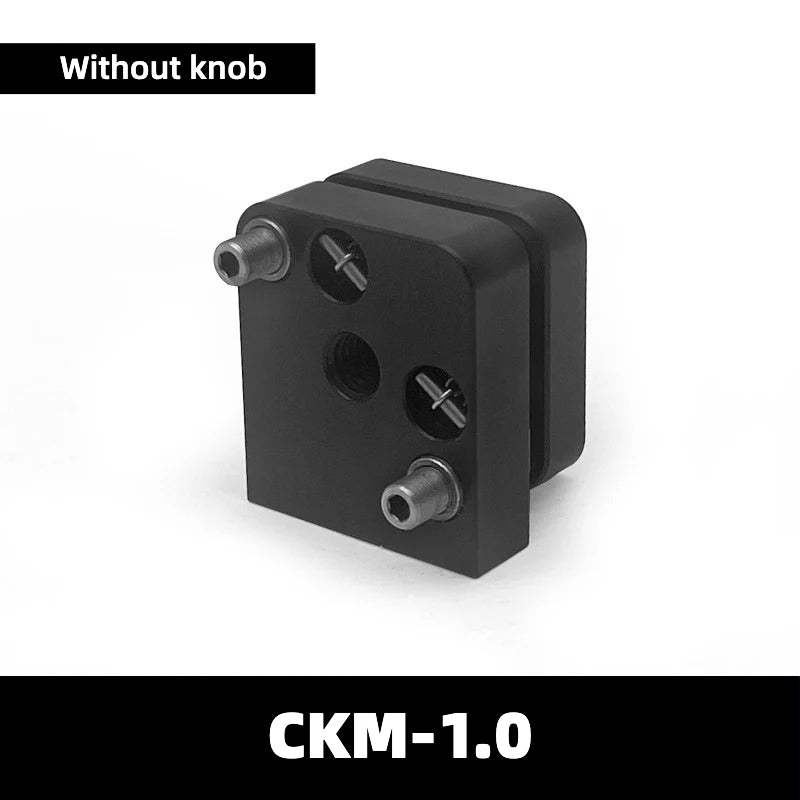

The CKM-1.0 series is a compact pitch/tilt mount for Ø25.4 mm (1") circular optics. It works with the CKM-ZT1.0 and CKM-ZT1.0H optic holders, covering a lens thickness range of 2.5–10 mm. The mount uses a two-screw plus spring structure. An M4 internal thread at the center of the front plate is used to attach the optic holder, and M4 holes on the back and bottom are used to mount the unit on posts or other supports.
Installation:

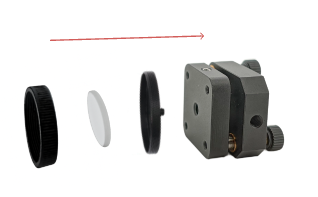

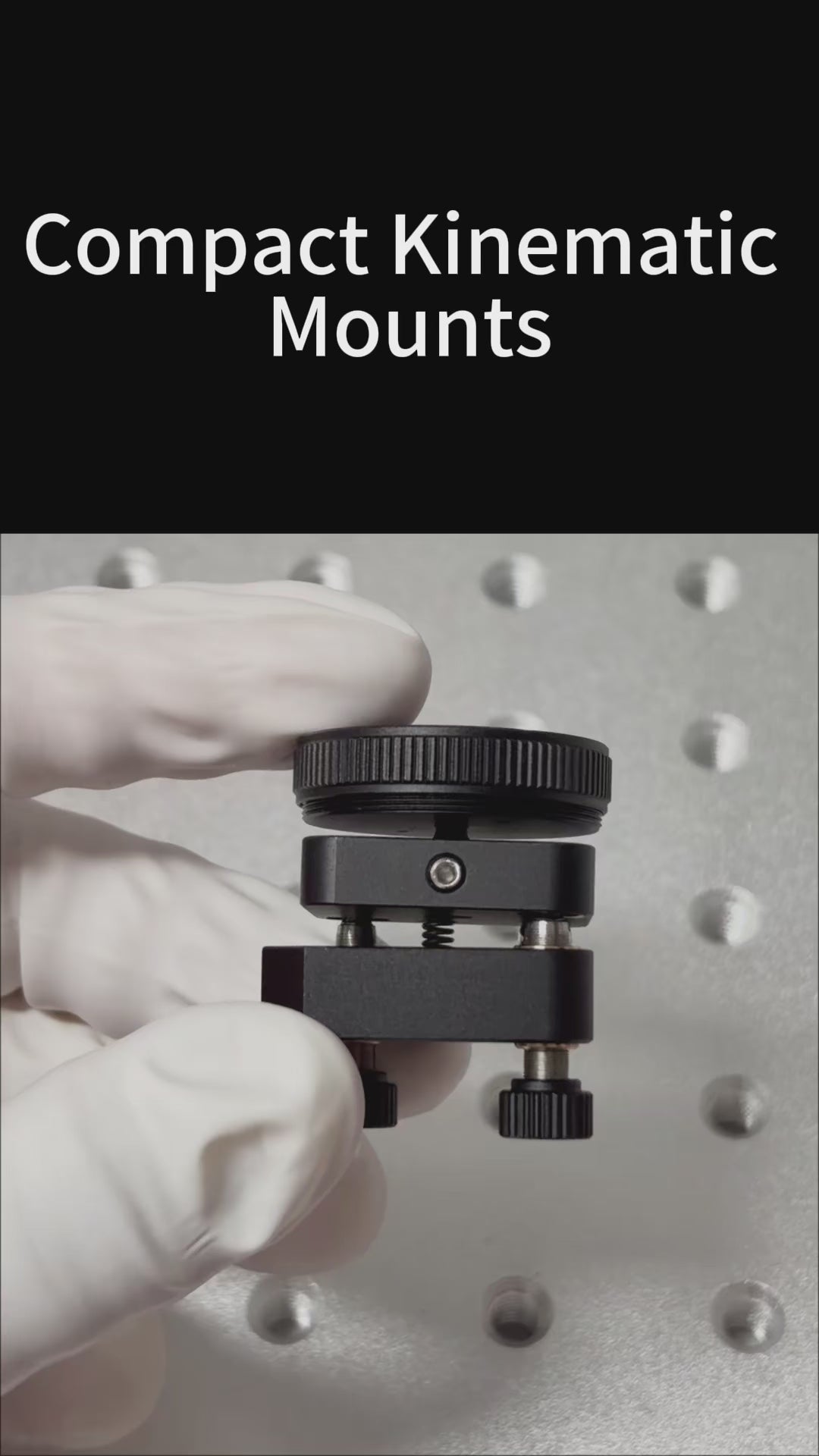

- Unscrew the knurled front cap.
- Place the Ø1" optic into the seat against the internal shoulder.
- Screw the cap back on to clamp the optic.
- Thread the assembled cell onto the compact kinematic mount.
