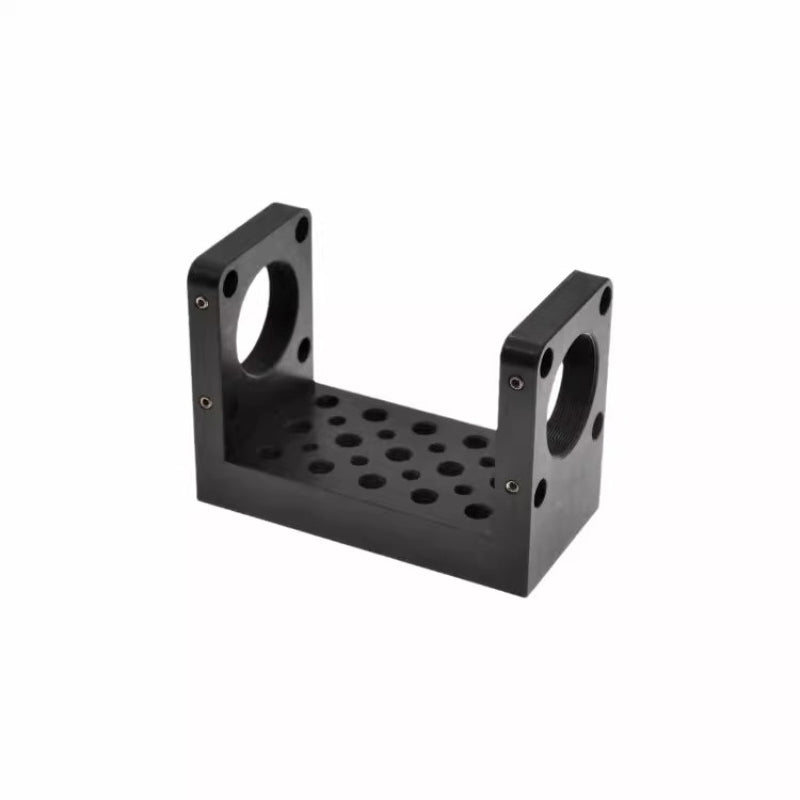

30mm Cage System U-Bench (30CSUB)

Main Specifications

• Product Name: 30 mm Cage U-Shaped Mounting Platform
• Model: 30CSUB
• Compatible System: 30 mm cage system with Ø6 mm cage rods

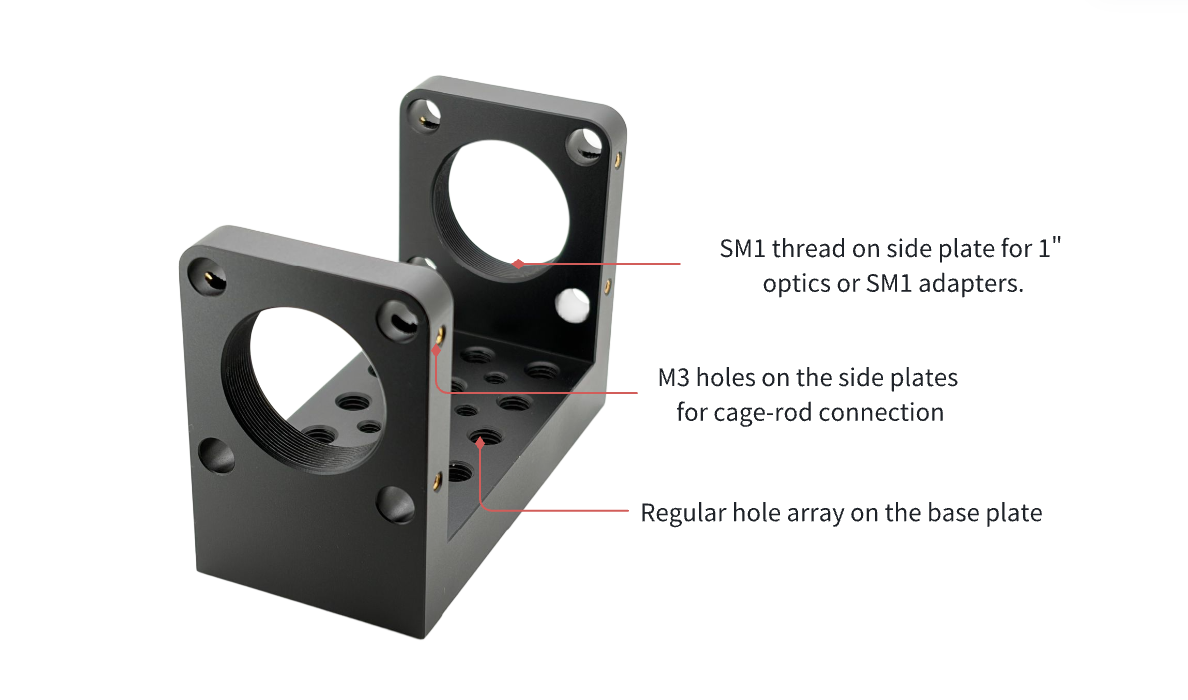

• Interface: SM1 (1.035"-40) threaded port on side plates

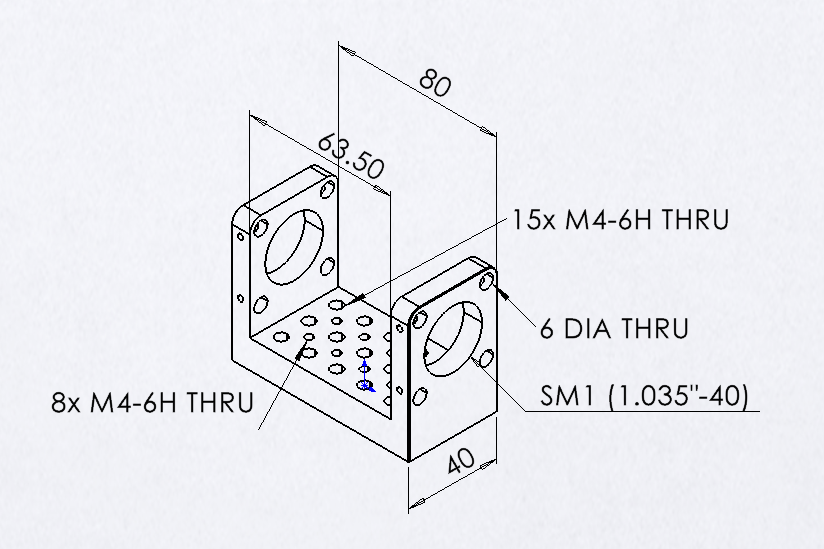

• Overall Size: base plate approx. 80 × 40 mm; side plate height approx. 58.10 mm; spacing between side plates approx. 63.50 mm
• Mounting Holes:
  • Base plate: M6 and M4 through-hole array
  • Side plates: M3 through holes for connecting cage rods and accessories
