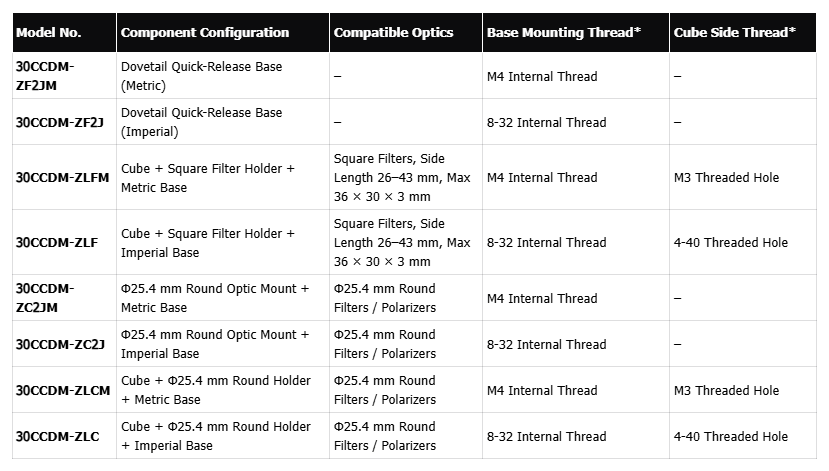

Selection Guide
Product Details

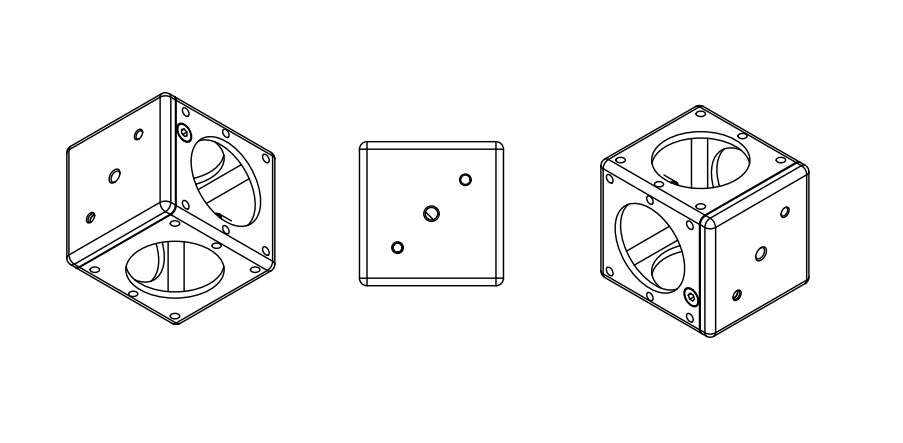

Product Overview

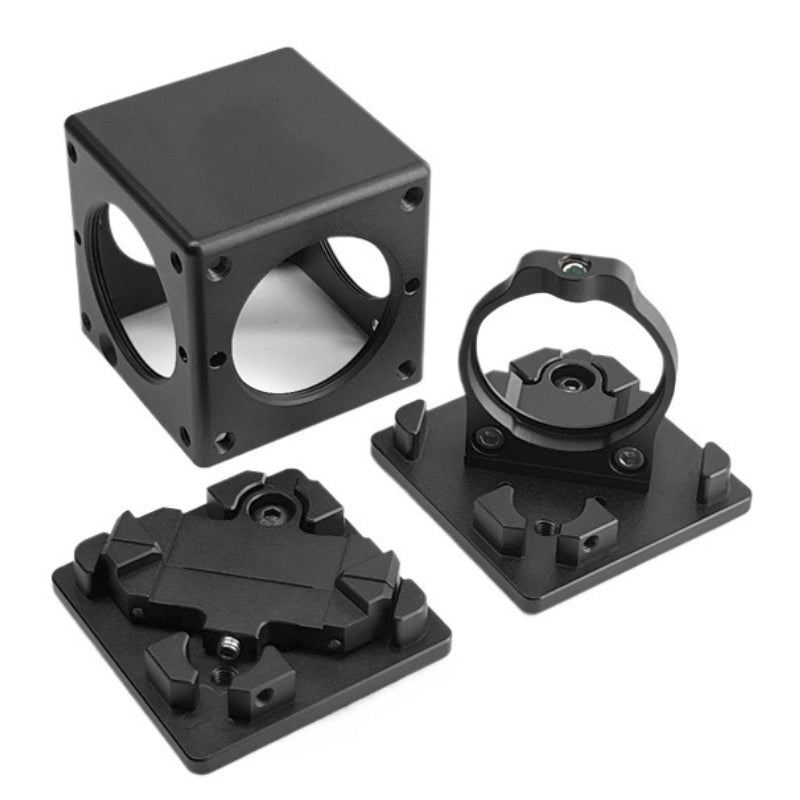

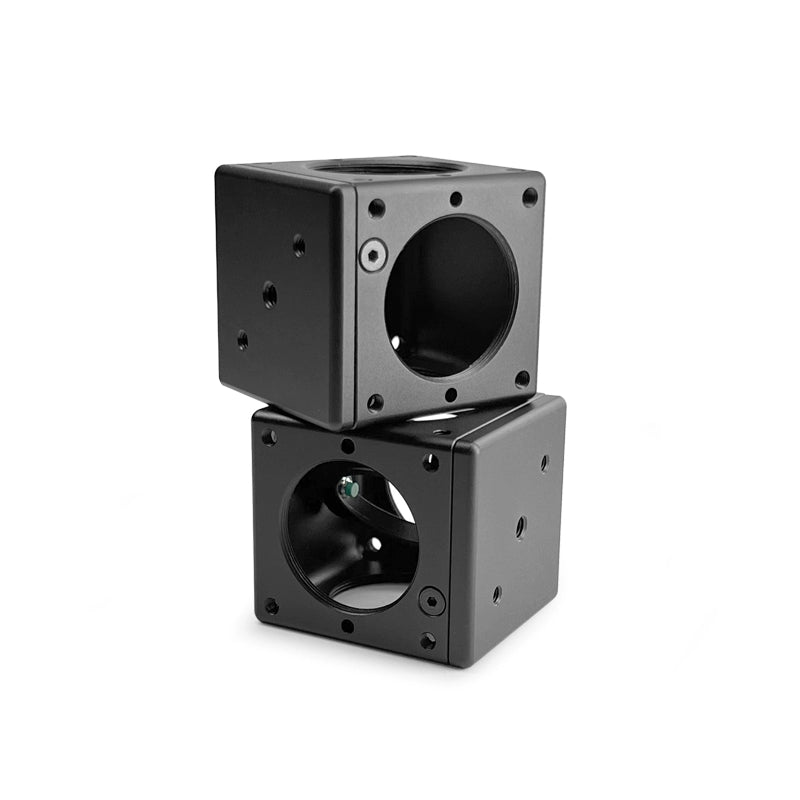

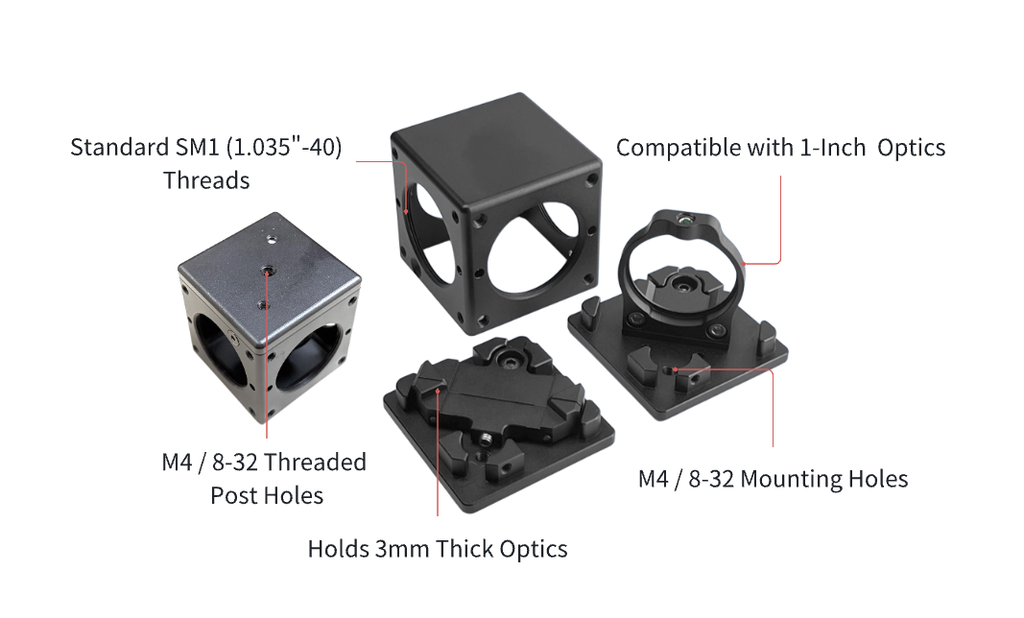

This series is designed for mounting and switching planar optical elements, such as dichroic filters, within 30 mm cage systems. The cube body features SM1 (1.035"-40) threaded ports. It accepts Φ25.4 mm round filters or 26–43 mm square filters via compatible retaining plates. Available in metric (M4 / M3) and imperial (8-32 / 4-40) models, the unit connects with posts, optical tables, and other cage components to construct 3D optical assemblies.
Installation Instructions
-

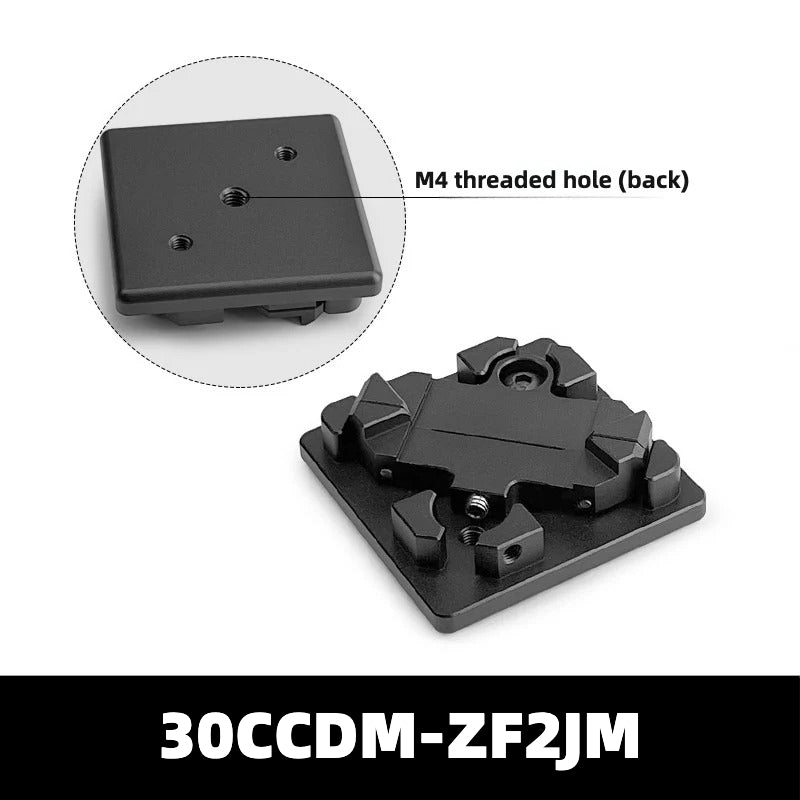

Select the appropriate metric or imperial model. Secure the quick-release base to a post or optical table using the M4 or 8-32 threaded hole.
-
Insert the square dichroic filter or Φ25.4 mm round filter into the holder and secure it by tightening the retaining plate or ring.
-
Attach the cube assembly to the base via the dovetail structure. Integrate into the optical path using 30 mm cage rods and SM1 lens tubes, then tighten the locking screws after angle adjustment.
