Product Name: 1" Rectangular Kinematic Mount
-
Model No.: REC-1-L
-
Material: Aluminum body, black anodized; brass adjustment bushings
-
Compatible Optics: Rectangular lenses, mirrors, and prisms with 1" (25.4 mm) width
-
Adjustment: Two-axis tilt in pitch and yaw
-
Mounting Interface: Mounting holes on the side and bottom
Structure and Functions
-
L-Shaped Base: Right-angle base for supporting rectangular or square optical elements.
-

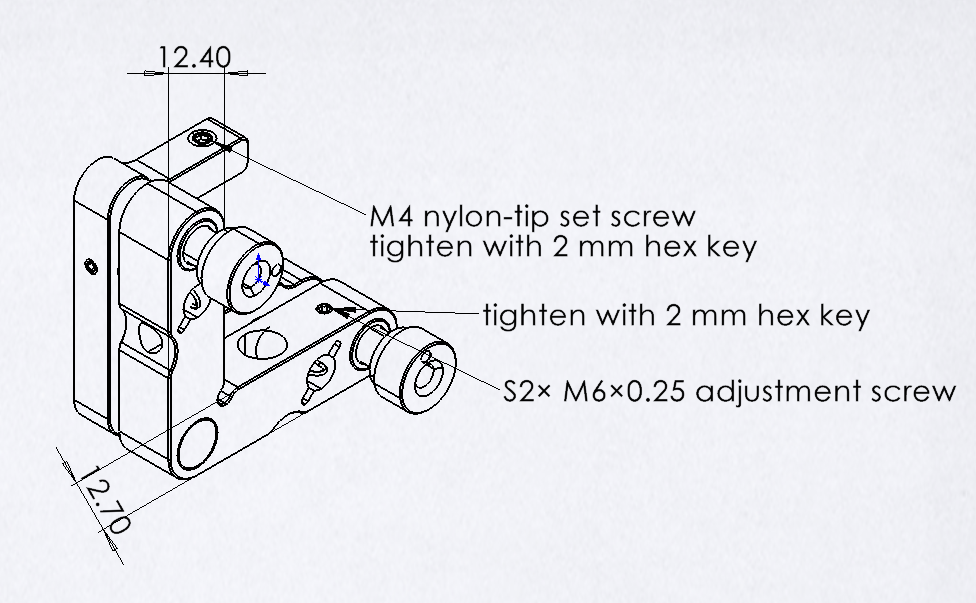

Clamping Arm: Upper clamping arm moves vertically and fixes the optic with a top screw; the screw tip is nylon or other soft material to reduce surface damage.
-

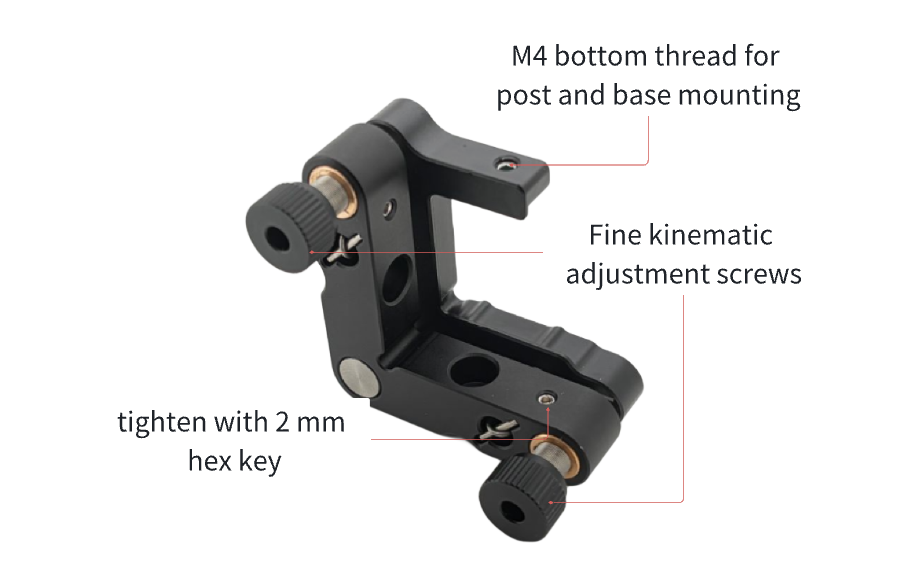

Adjustment Knobs with Locks: Two knobs control tilt of the front plate; brass lock rings at the knob base lock the set position.
-
Left-Hand Configuration: REC-1-L is a left-hand design with adjustment knobs on the left side to help avoid the beam in different layouts.
